Overview

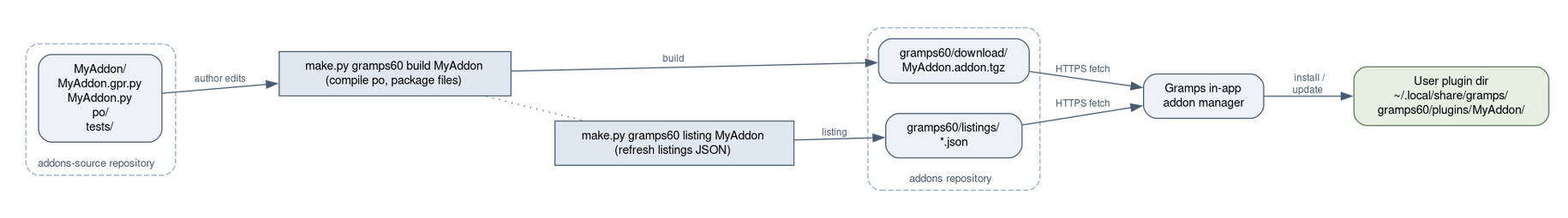

From "works on my machine" to "users can install it from the addon manager." This chapter is the source-to-distribution pipeline: how addons-source becomes a .addon.tgz in addons, how the in-app addon manager picks it up, and what to send upstream.

The normative rules a submission must satisfy (branch targeting, version-field discipline, PR body shape, Mantis trailers) live in [15-guidelinesN-guidelines.md). This page covers the workflow — what to run, what files appear, where they end up.

The three repositories

Gramps addons live across three repositories. You'll have all three cloned side-by-side under one base directory:

base/
├── gramps/          # gramps-project/gramps — Gramps itself; source of truth for the API
├── addons-source/   # gramps-project/addons-source — addon source code, one folder per addon
└── addons/          # gramps-project/addons — built distribution, one folder per Gramps version

Repo	What's there	You edit?
gramps	The Gramps source tree; provides GRAMPSPATH for the build	No (unless writing a core change)
addons-source	The addon source: <Addon>/<Addon>.gpr.py, <Addon>/<Addon>.py, po/, tests/	Yes — author addons here
addons	Built .addon.tgz packages and listing JSON, organised by Gramps minor	No — make.py writes to it

addons is the output. The in-app addon manager hits its HTTPS mirror to fetch listings and downloads. Editing files in addons directly does nothing — the next make.py run overwrites them.

Branch directory split inside addons/

Inside addons/, each Gramps minor gets its own subdirectory:

addons/
├── gramps42/
├── gramps50/
├── gramps51/
├── gramps52/
├── gramps60/
│   ├── download/   # <Addon>.addon.tgz files
│   └── listings/   # JSON catalogues fetched by the addon manager
└── gramps61/
    ├── download/
    └── listings/

The same addon can ship to multiple minors, each with its own .addon.tgz — that's why the addon manager reads only the listing for the running Gramps version.

Initial clone

mkdir gramps-addons && cd gramps-addons

git clone https://github.com/gramps-project/gramps.git
git clone https://github.com/gramps-project/addons-source.git
git clone https://github.com/gramps-project/addons.git

cd addons-source
git checkout -b gramps60 origin/maintenance/gramps60     # for 6.0
# or for master/6.1:
# git checkout -b gramps61 origin/master

The branch you check out in addons-source determines which Gramps minor your built addons target — make.py reads the branch name to pick the output directory inside addons/.

See 13-compatibilityL-compatibility.md) for branch-targeting guidance per Gramps minor. ## Build prerequisites `make.py` calls out to two environment things and one OS tool: - **`GRAMPSPATH`** — absolute path to your `gramps/` clone. - **`LANGUAGE`** — must be set to `en_US.UTF-8` for the build to run. - **`intltool`** — `sudo apt-get install intltool` on Debian/Ubuntu. The standard invocation: ```bash GRAMPSPATH=/path/to/gramps LANGUAGE='en_US.UTF-8' python3 make.py gramps60 <command> <Addon> ``` Cumbersome to type each time. Set the env vars in your shell startup once; only the `make.py` line varies per command. In the examples below, `gramps60` is the maintenance/gramps60 target; substitute `gramps61` when you're working on the master branch. ## `make.py` cheat sheet `make.py` lives at the top of `addons-source` and runs against one addon at a time, or `all` for everything. The commands you'll use most: | Command | What it does | |------------------------------------------|-------------------------------------------------------------------------------| | `make.py gramps60 init <Addon>` | Create `<Addon>/po/template.pot` from extracted strings | | `make.py gramps60 init <Addon> <lang>` | Create `<Addon>/po/<lang>-local.po` from the template | | `make.py gramps60 update <Addon> <lang>` | Merge new strings from Gramps + the addon into `<lang>-local.po` | | `make.py gramps60 compile <Addon>` | Compile every `<lang>-local.po` into `.mo` files | | `make.py gramps60 build <Addon>` | Compile translations *and* produce `<Addon>.addon.tgz` in `addons/gramps60/download/` | | `make.py gramps60 listing <Addon>` | Refresh `addons/gramps60/listings/*.json` so the addon manager sees it | | `make.py gramps60 clean <Addon>` | Delete generated files (`locale/`, `*.mo`) — run before `git add` | | `make.py gramps60 build all` | Build every addon | `build` includes `compile`, so the standard release cycle is `clean` → edit → `build` → `listing` → commit + push to `addons/`. ### What `build` packages By default `build` includes: - every `*.py` in the addon folder, - every `*.glade`, `*.xml`, `*.txt`, - every `locale/*/LC_MESSAGES/*.mo`. Anything else — README images, extra data files, help HTML — needs an explicit `MANIFEST` file in the addon's root listing them, **with the addon folder name prefixed on each line**: ``` <Addon>/README.md <Addon>/help/index.html <Addon>/data/* ``` The `MANIFEST` mechanism was added in Gramps 5.0 and is the way to ship anything beyond the default file types. ## The localisation flow Per-addon translations live under `<Addon>/po/`. They are independent of Gramps' core catalogues — Gramps' plugin loader binds `_()` to the addon's own catalog when the implementation module declares: ```python from gramps.gen.const import GRAMPS_LOCALE as glocale _ = glocale.get_addon_translator(__file__).gettext ``` See [05-fundamentals → Translation for the full opt-in. Without that line, strings fall back to the core catalog regardless of where translators put them.

Adding a new language

# 1. Generate (or refresh) the template from extracted strings.
make.py gramps60 init <Addon>

# 2. Initialise a fresh language file from the template.
make.py gramps60 init <Addon> fr

# 3. Translator edits <Addon>/po/fr-local.po manually.

# 4. Recompile so the .mo file lands under <Addon>/locale/fr/LC_MESSAGES/.
make.py gramps60 compile <Addon>

# 5. Commit the .po (NOT the .mo or the generated locale/ tree).
git add <Addon>/po/fr-local.po
git commit -m "Add French translation for <Addon>"

Refreshing an existing language

When you've changed user-visible strings in the addon, every existing <lang>-local.po needs new entries merged in:

make.py gramps60 update <Addon> fr

This preserves existing translations and marks new or changed entries as fuzzy for the translator to review.

Editing template.pot's header once

The header of <Addon>/po/template.pot carries author, maintainer, and team metadata. Edit it after the first init — the values propagate into every per-language file the next time you init <Addon> <lang>.

What to commit, what to skip

Commit:

• <Addon>/po/template.pot
• <Addon>/po/<lang>-local.po (one per language)

Don't commit:

• <Addon>/locale/** — generated by compile and build. Always run make.py gramps60 clean <Addon> (or rm -rf <Addon>/locale) before git add.
• <Addon>/*.mo outside locale/ — same reason.

Publishing to addons/

build writes one .addon.tgz per addon; listing rebuilds the JSON catalogues the addon manager fetches. Both go into the addons/ repository and need committing there, not in addons-source/:

# In addons-source/, build the package.
make.py gramps60 build <Addon>
make.py gramps60 listing <Addon>

# Switch to the addons/ checkout.
cd ../addons

# Stage the new .tgz and the refreshed listings.
git add gramps60/download/<Addon>.addon.tgz
git add gramps60/listings/*
git commit -m "Add <Addon> for Gramps 6.0"

# Push when you have write access — see [16-guidelines] for the review gate.

The in-app addon manager hits the addons repo over HTTPS and shows the addon to users on their next "Check for updates" cycle.

Editing addons-source/, not the live plugin directory

During development it's tempting to edit directly in ~/.local/share/gramps/gramps60/plugins/<Addon>/ so a Gramps restart picks up the change without copying. Don't — that directory is the auto-sync target, and Gramps writes back through it on every save. Edits made there are silently overwritten on the next source save.

Edit in addons-source/<Addon>/. The dev loop is one of:

• Gramps 6.0 — copy / rsync the folder into the user plugin directory on each save. Plugin discovery doesn't follow symlinks.
• Gramps 6.1+ on Linux/macOS — symlink the working tree into the user plugin directory once, then edit in place. Plugin discovery follows symlinks with realpath-based loop dedup (commit 9443dcbb30).
• Windows, any version — physical copy. The 6.1 symlink test is skipped on Windows because the platform's symlink behaviour is inconsistent without elevated privileges.

See 02-get-started for the user plugin directory paths.

Submitting a new addon

The first time you add an addon to addons-source/:

cd addons-source

# 1. Create the folder and the two required files.
mkdir <Addon>
$EDITOR <Addon>/<Addon>.gpr.py
$EDITOR <Addon>/<Addon>.py

# 2. (Optional, recommended) Translation scaffold + tests.
mkdir <Addon>/po <Addon>/tests
$EDITOR <Addon>/tests/__init__.py    # empty marker — see 08-testing
$EDITOR <Addon>/tests/test_<Addon>.py

# 3. Clean any build artefacts before committing.
make.py gramps60 clean <Addon>

# 4. Commit and push to your fork, then open a PR.
git add <Addon>
git commit -m "Add <Addon>: <one-line description>"

Open the PR against the correct branch — for an addon targeting Gramps 6.0, that's maintenance/gramps60, which the maintainer cherry-picks forward to gramps61 (see 16-guidelines → Contributor workflowN-guidelines.md#contributor-workflow) for the full submission shape). ## Update an existing addon After editing source: ```bash cd addons-source # 1. Iterate: edit, restart Gramps, verify behaviour. # 2. Refresh translations if user-visible strings changed. make.py gramps60 update <Addon> all # 3. Compile-check. make.py gramps60 compile <Addon> # 4. Clean and commit. make.py gramps60 clean <Addon> git add <Addon> git commit -m "<Addon>: <what changed>" ``` The `version` field in `<Addon>.gpr.py` **stays untouched** in PRs — the maintainer manages versions centrally. (See [15-guidelinesN-guidelines.md#contributor-workflow); this came up on PR 911 where a bump was rejected.) ## See also - [01-overview — what an addon is.

• 05-fundamentals → Translation — the _() injection that makes per-addon .po files load.
• 08-testing — what to put in tests/ before packaging.
• 13-compatibilityL-compatibility.md) — picking the right Gramps minor and branch for your addon. - [15-guidelinesN-guidelines.md) — the normative rules a PR must satisfy. - [Addons development — the standalone wiki page; primary scraped source for this chapter.
• addons-source CONTRIBUTING.md — the addons-source-side contributor guide.

This article's content is incomplete or a placeholder stub. Please update or expand this section.
